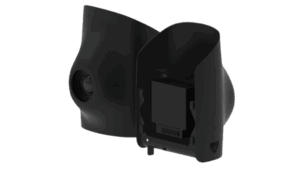

Phase One P5

RGB Camera

The Phase One P5 is the revolutionary flagship 128MP Medium Format camera that transcends its role as a mere camera – it‘s a survey-grade instrument set to redefine the way you capture. With an astounding 128-megapixel resolution, it delivers unprecedented image detail and resolution, ensuring the utmost accuracy and reliability in your survey data.

Achieve exceptional results, down to 0.5 cm RMS XY/Z* absolute accuracy, making your data impeccably trustworthy. When paired with the Trinity Pro, the P5 swiftly covers large areas with survey-grade precision, significantly reducing time and costs compared to conventional methods. The electronic global shutter, combined with metrically calibrated lense and sensor, reduces the necessity for extensive software corrections caused by pixel distortion, ensuring the preservation of high-quality data. Take your surveying to the next level with the P5!

Technical Specifications

Sensor resolution

128 MP

Sensor type

CMOS

Sensor size

Medium Format

Shutter Type

Electronic Global Shutter

Dynamic Range

80 dB

Max Frame Rate

4 fps

Storage

CF Express Card up to 2TB

Lens Options

80 mm (HFOV: 32° VFOV: 23)
35 mm (HFOV: 66° VFOV: 49)

80 mm Option

GSD @60m – 0.26 cm/px
GSD @120m – 0.52 cm/px
Coverage @60m AGL – 67 ha (0.26cm/px GSD, 70% overlap)
Coverage @120m AGL – 135 ha (0.51cm/px GSD, 70% overlap)

35 mm Option

GSD @60m – 0.59 cm/px
GSD @120m – 1.18 cm/px
Coverage @60m AGL – 154 ha (0.59cm/px GSD, 70% overlap)

Sample data

Flight altitude – 60 m
Flight speed – 18 m/s
GSD – 0.26 cm/px
Images – 1804
Area – 14 ha
Flight time – 12.40 min
