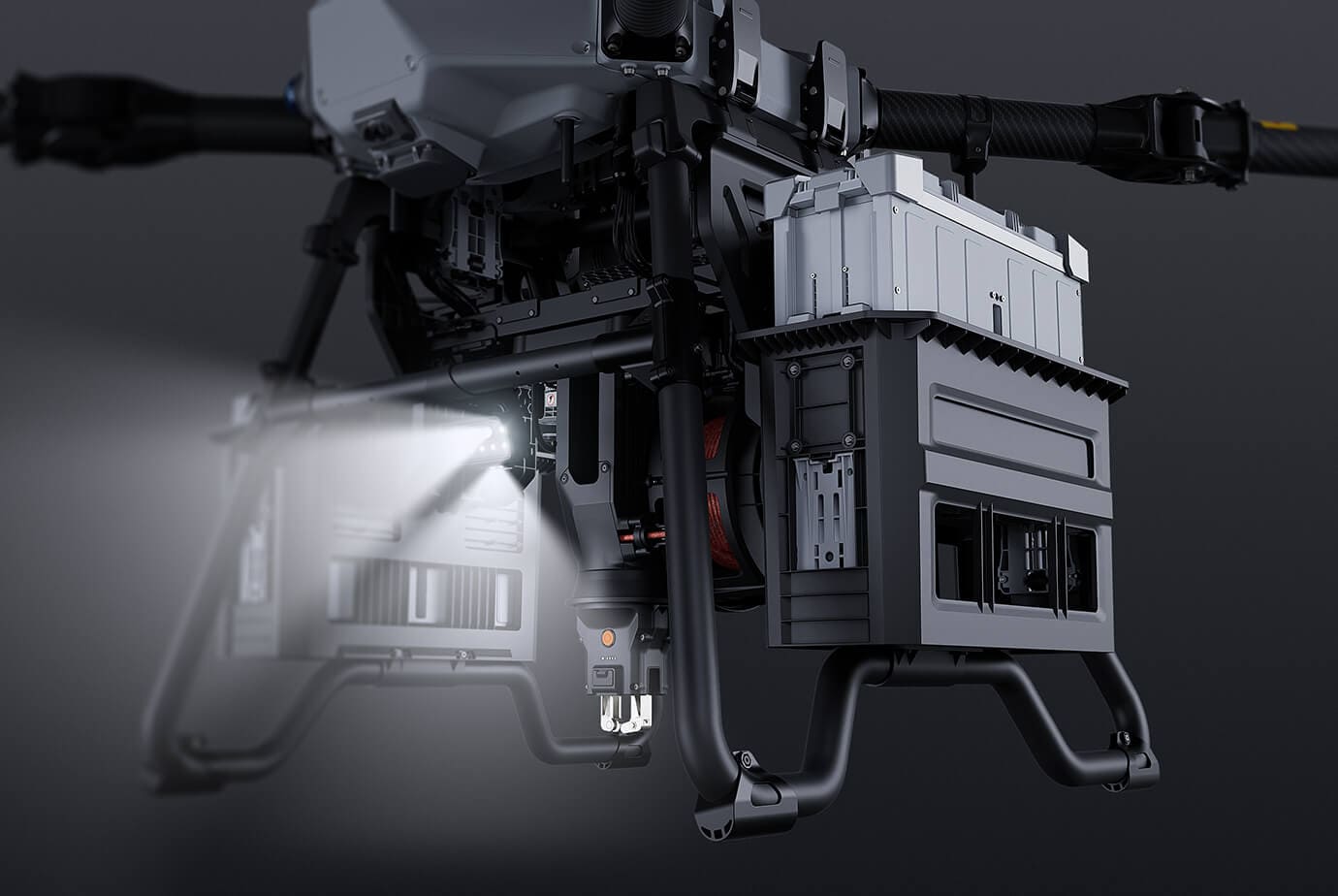

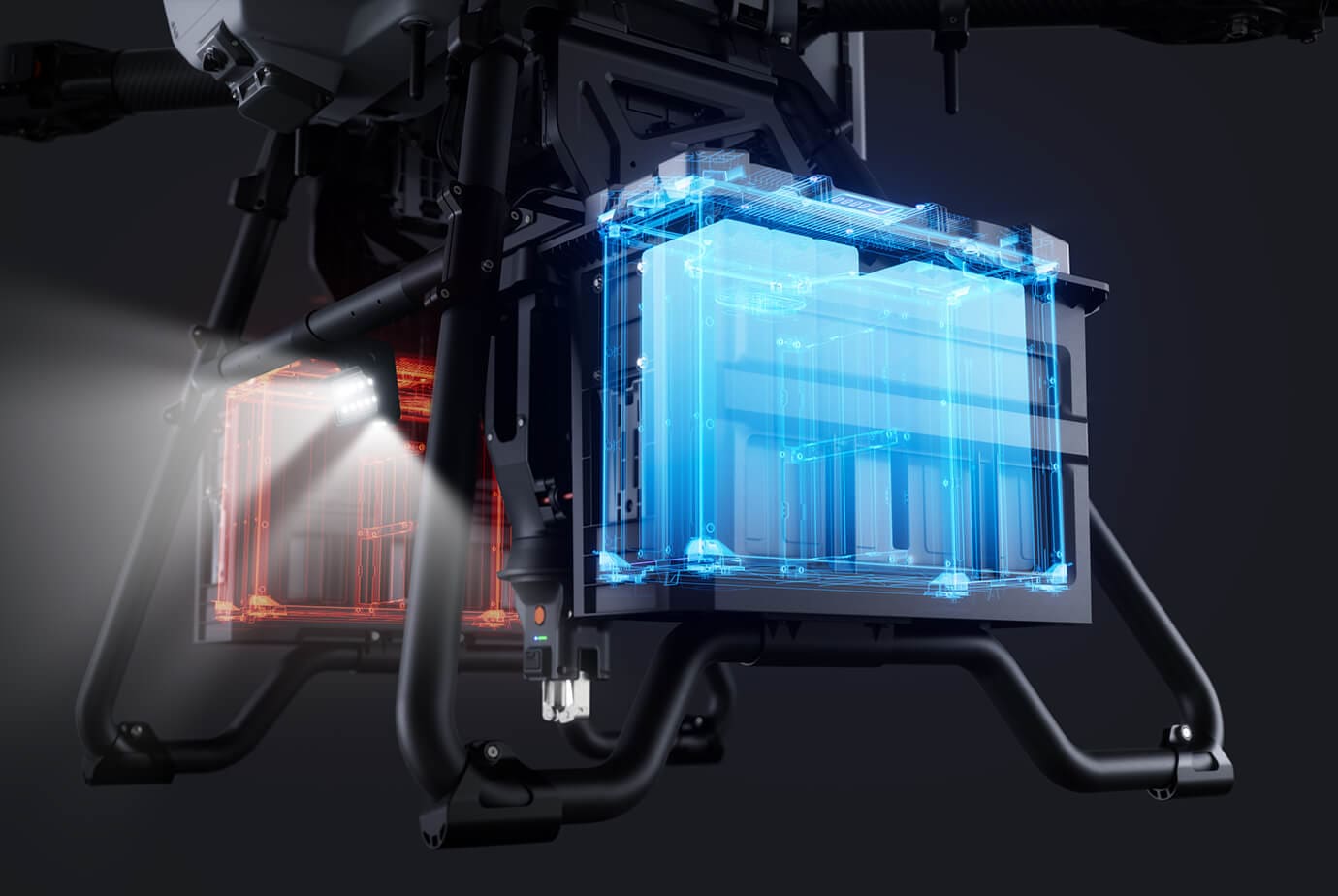

In dual-battery mode, the two batteries work as backups for each other. If one battery fails during flight, another battery will keep the drone flying and avoid accidental power-off.

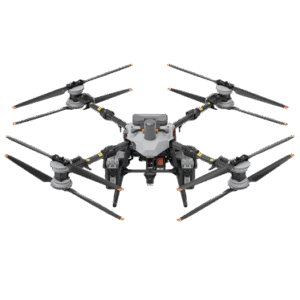

Introducing the brand new DJI FC100, 85 kg[1]payload capacity with dual battery, 2 payload systems, integrated seamlessly with a powerful developer ecosystem, redefine professional delivery and break through the operational boundaries. The intelligent and advanced Safety System enables unstoppable delivery from mountains to oceans, unlocking infinite possibilities.
Flight Performance
Carry heavier and reach farther, expertly balances excellent performance with power efficiency. Experience efficient delivery.
85Kg
Max Payload
with Dual Battery[1]
12Km
Max Flight Distance with 149.9 kg
Takeoff Weight[2]
82Kg
Max Single-Axis Thrust
32%
Enhanced Power Efficiency[3]

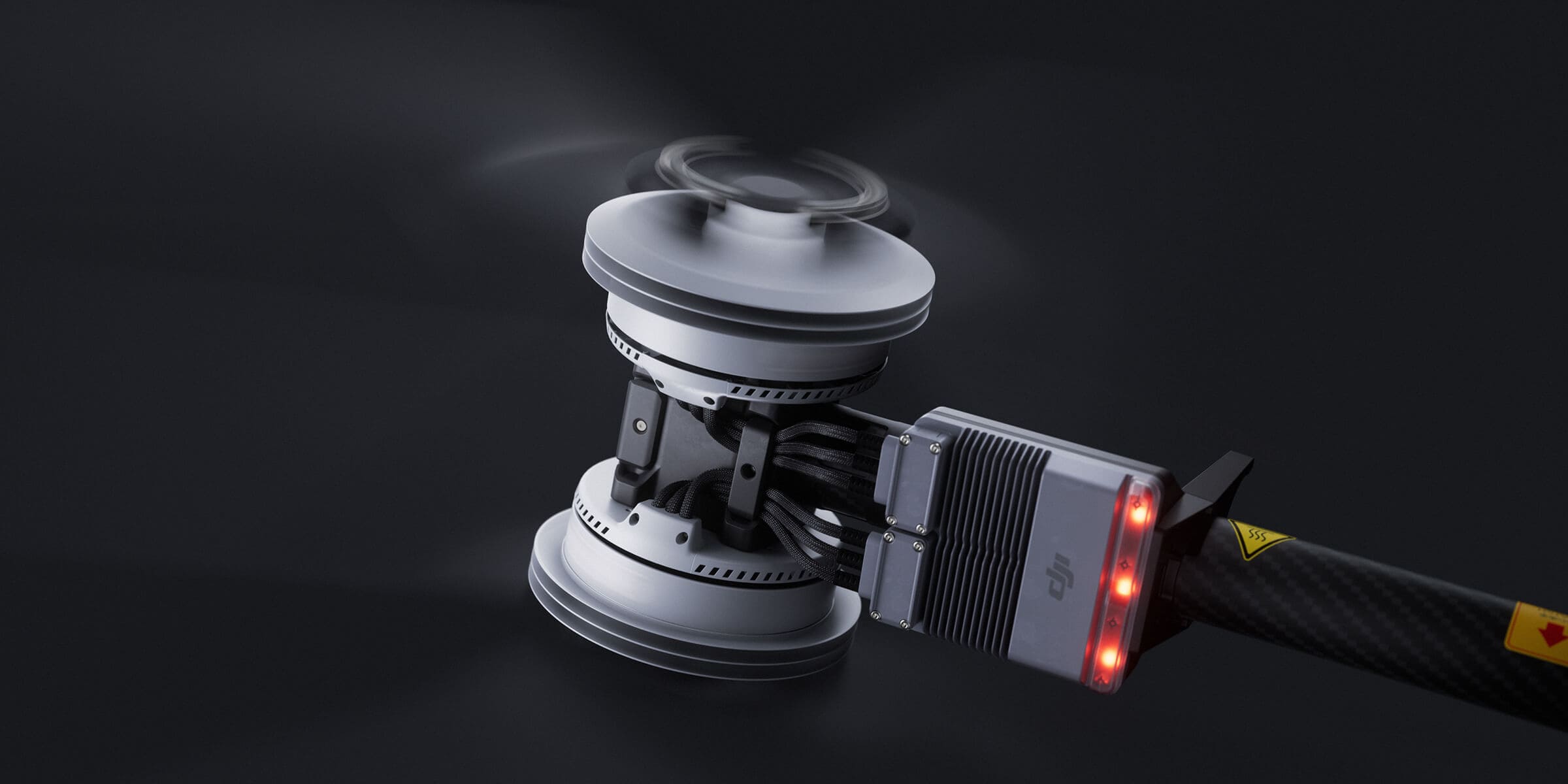

Compact size, high load capacity. Powerful propulsion system offers enhanced safety redundancy,
featuring Propeller Stop Protection for added security and reliability.
Carbon fiber propellers offer greater rigidity and lighter weight, can resist deformation even at high temperatures. With
Optimized airfoil and enlarged propeller diameter, energy efficiency is improved. The upper motors are equipped with
Propeller Clamps, which reduce propeller vibration for more stable flight.

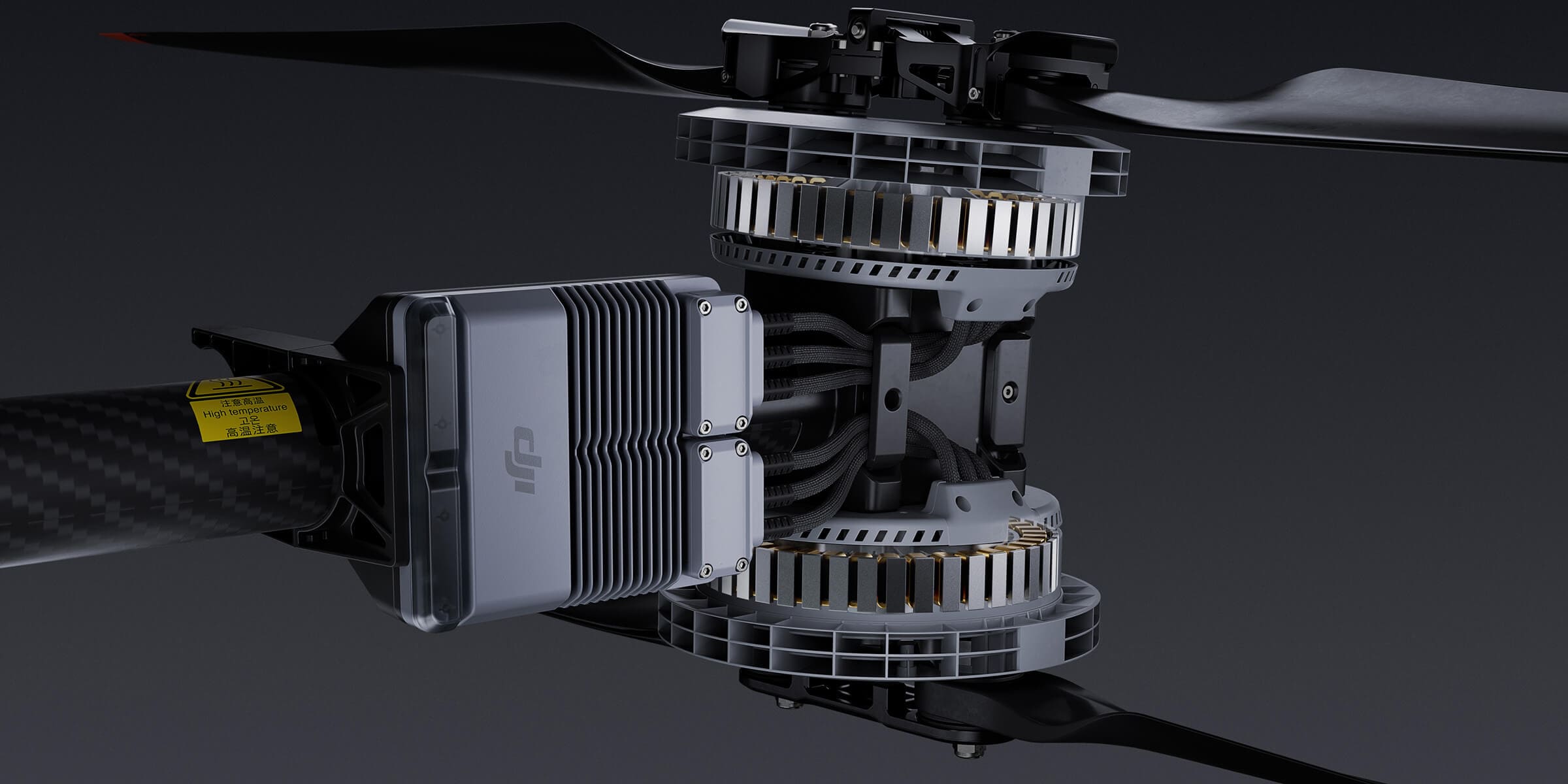

Larger motors, more torque. ESC with 420A current ensure stable and reliable operation, providing faster response times.
Payload System

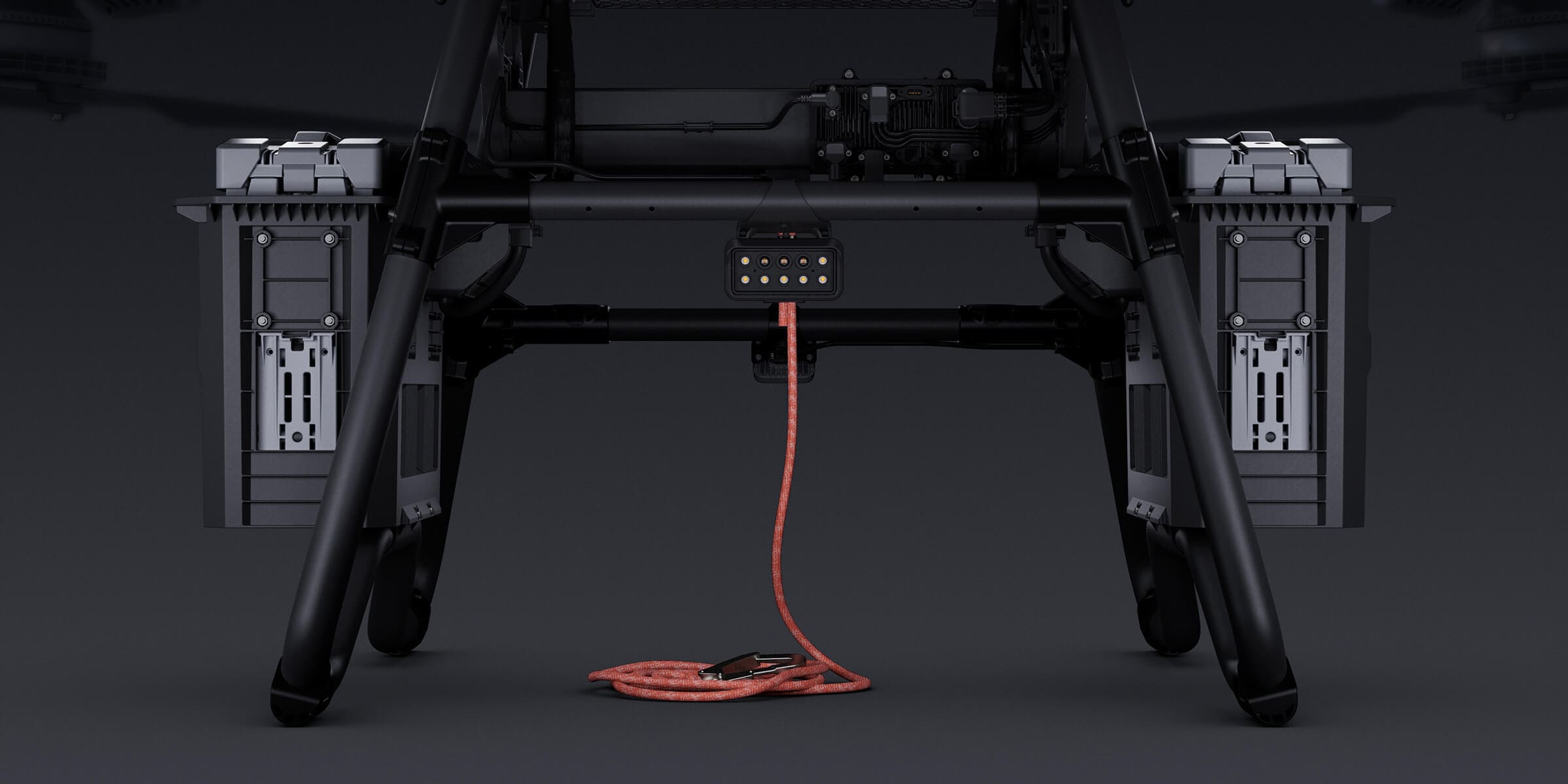

FC100 supports 2 payload systems, the brand new Flagship Winch System, equipped with an Electric Hook for efficient loading and unloading. Also compatible with DJI Dual-Battery Lifting System, flexibly adapting to various delivery scenes.
Electric
Hook
Electric Opening and Closing[4]
Wireless
Charging[5]
Convenient and Hassle-Free
Real-Time Weighing
Avoid Overloading, Convenient for Settlement
Audible and Visual Alerts
Safe Loading and Unloading
Auto Balance Control
Minimize swing with a single click for
smooth delivery
Rope Cut Escape
Heat and melt the rope with one click to
free the drone for safe disentanglement
Real-Time Weighing
Avoid overloading, convenient for
settlement
Safety System

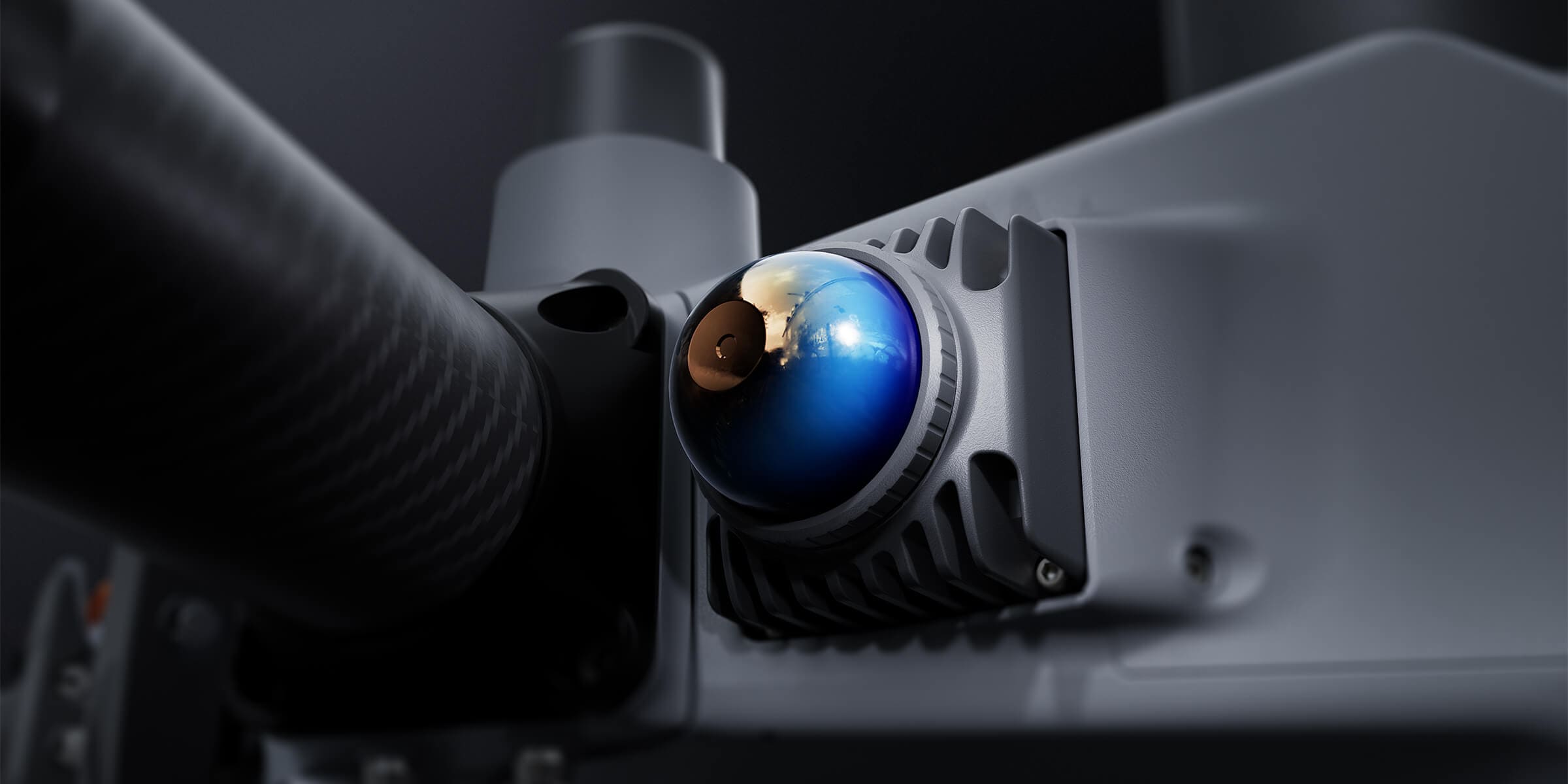

Capable of capturing dense spatial point cloud up to 300,000 points per second, providing a detailed view of complex
terrains. It can capture obstacle more clearly than FPV during nighttime operations.

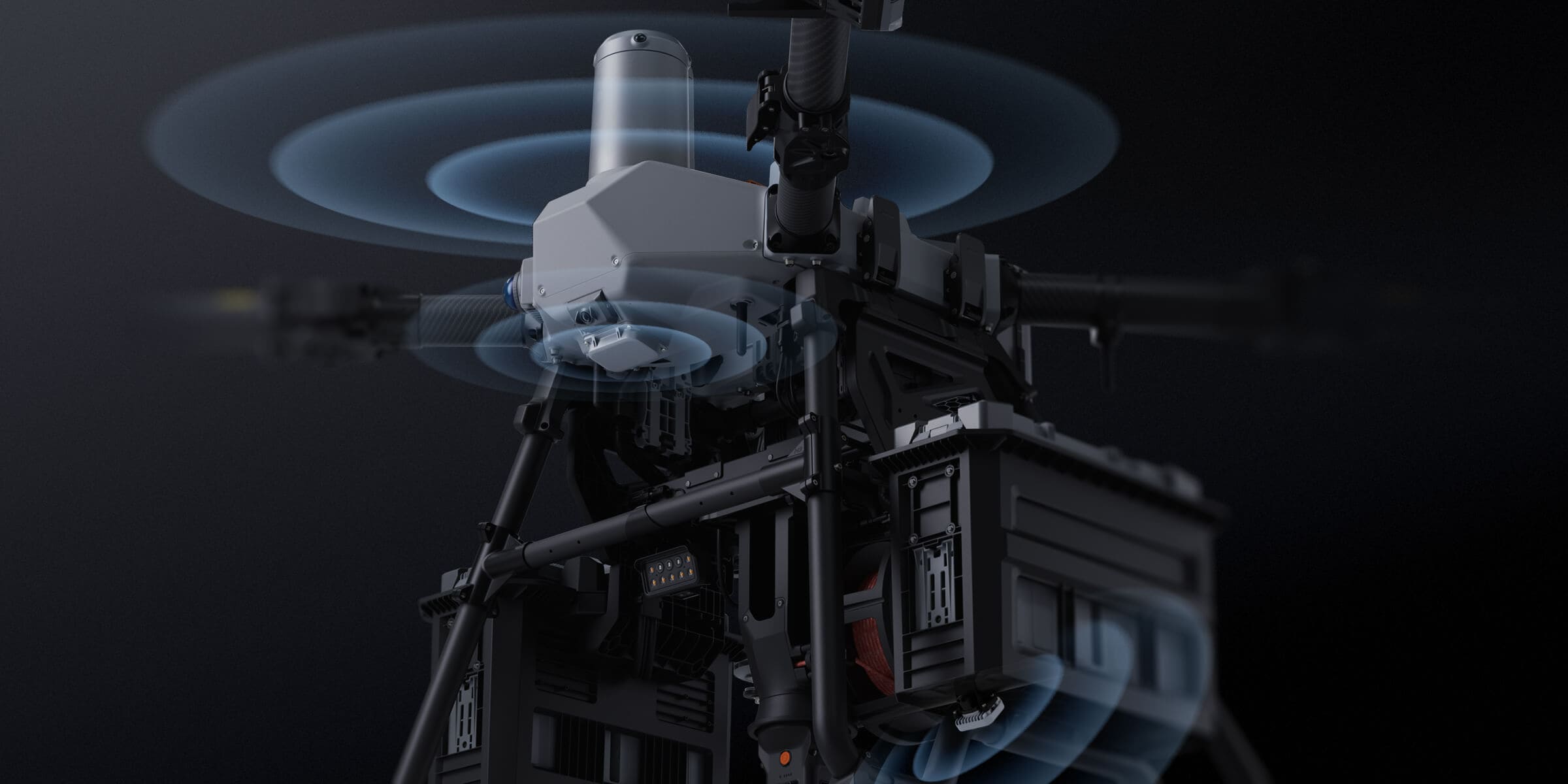

The front radar performs 5,000 vertical scans per second combined with 360° horizontal mechanical rotation scanning, along
with a down radar and a rear radar offering a more comprehensive detection range.

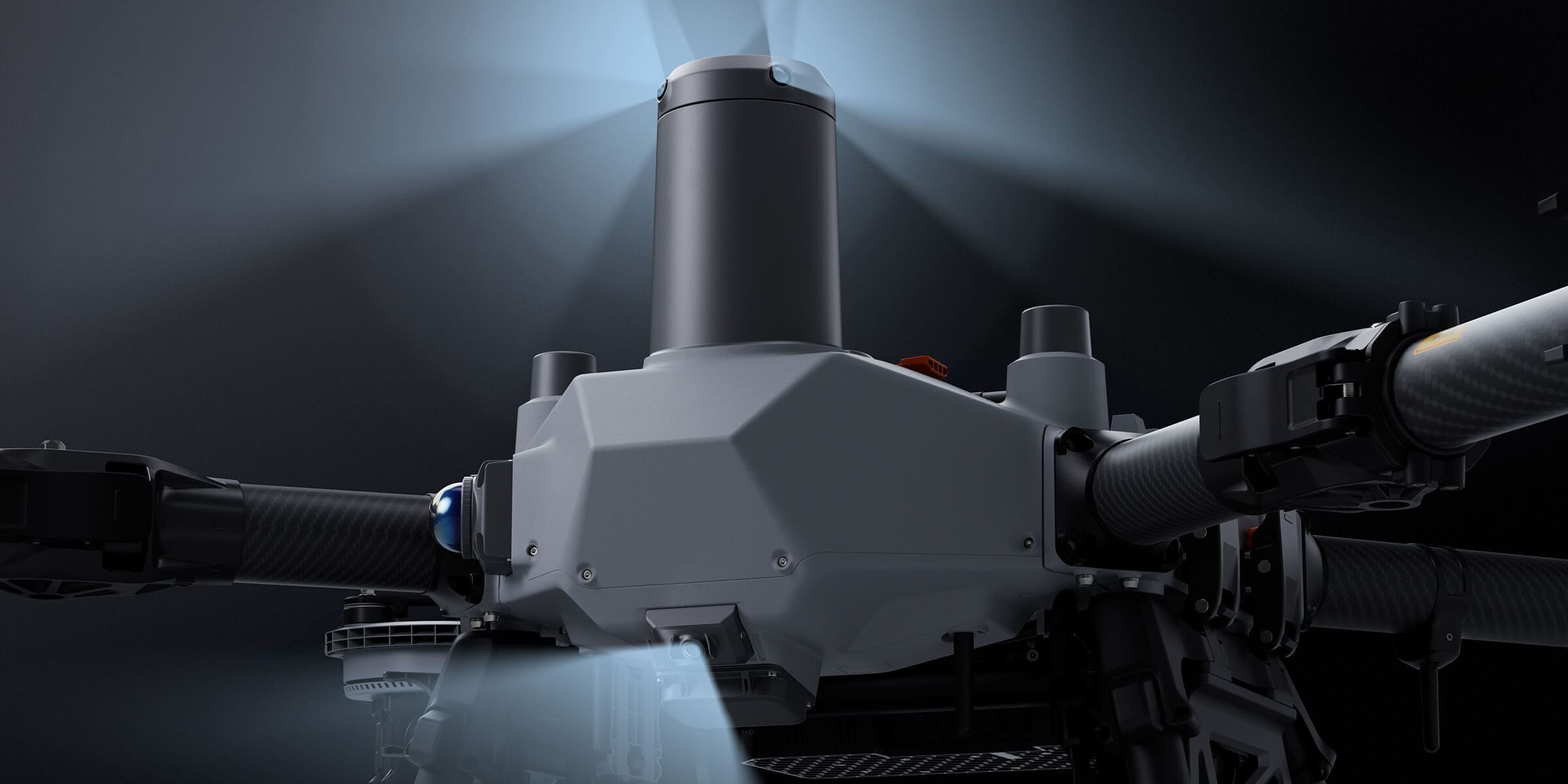

The quad-vision system, pairing with an FPV low-light full-color camera, facilitates unrestricted viewing of flight scenes in
front, rear, left, right, and underneath to detect obstacles more intelligently.
Larger motors, more torque. ESC with 420A current ensure stable and reliable operation, providing faster response times.

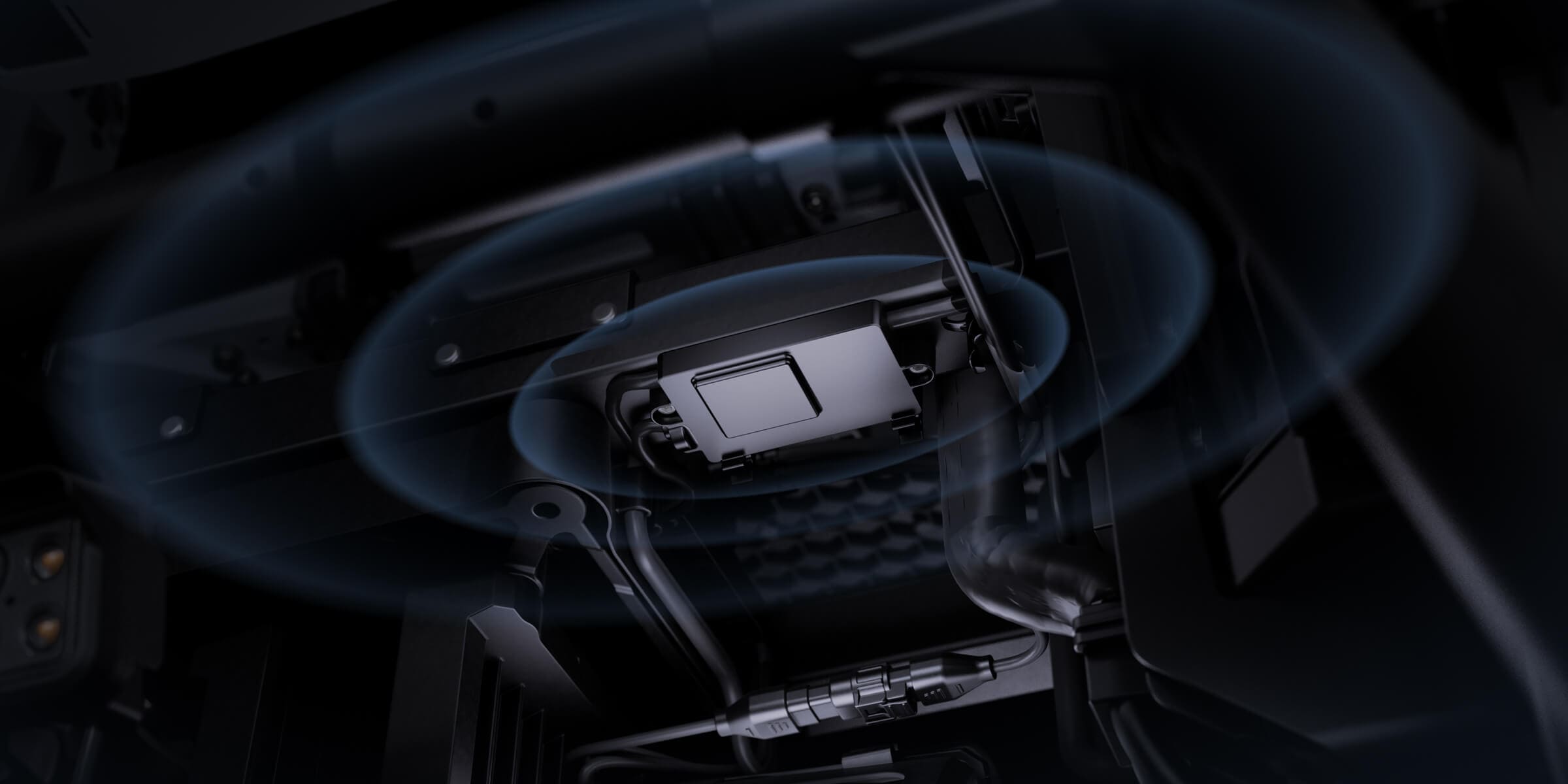

A built-in ADS-B in detects and warns nearby crewed aircraft.
From takeoff to landing, from routine to emergency situations, DJI FC100 provides comprehensive protection for personnel, drones, and cargo cross all scenes.
The integrated parachute features multi-redundancy and can deploy at low altitude under maximum takeoff weight conditions, which can effectively slow down the aircraft's touchdown speed and minimize risk to people and property.
High-performance Canopy
corrosion-resistant, low air permeability
Independent Control
Independent power supply, independent storage
Multiple Protection
Intelligent power-on self check, propellers stop rotation before parachate opening
Safety and Reliablity
Touchdown speed can be reduced to 7 m/s[10]
DJI FC100 underwent multiple reliability tests, such as high and low temperature operation tests, wind tunnel tests, winch release and retrieve tests, electric hook opening and closing tests, and parachute opening tests. Forged through rigorous trials, the drone can fly in extreme conditions.
6000m
Max Flight Altitude[11]
12m/s
Max Wind Speed Resistance[12]
IP55
Ingress Protection Rating[13]
-20° to 40° C
Operating Temperature[14]
Power System
Ultra-Fast Charging

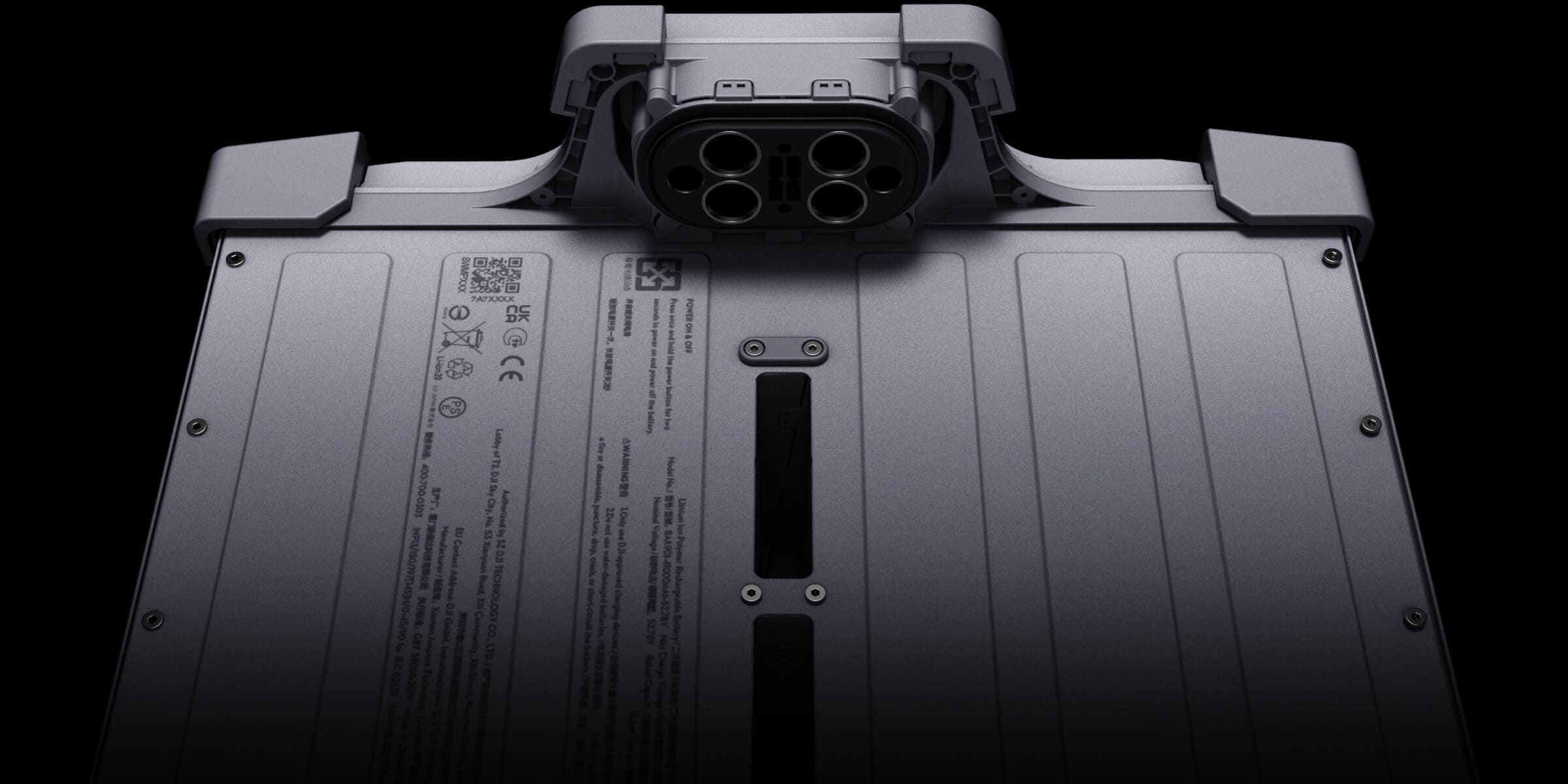

High Battery Capacity
Triple Air-Channel Cooling Design
Accessories of power system vary between different countries.
Please contact the authorized DJI dealers at your location for details

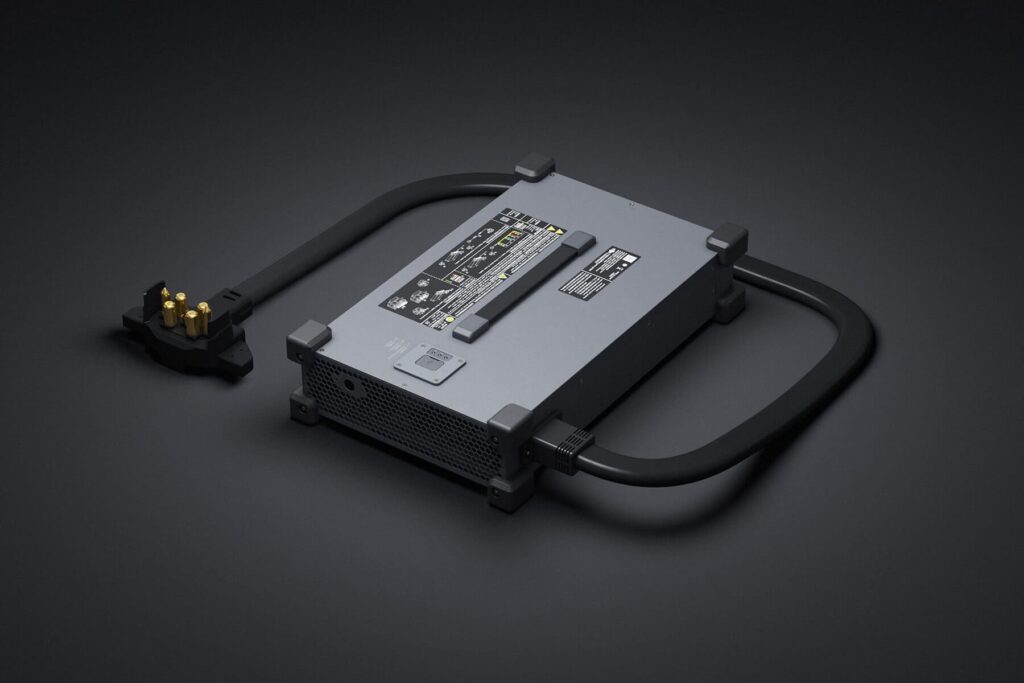

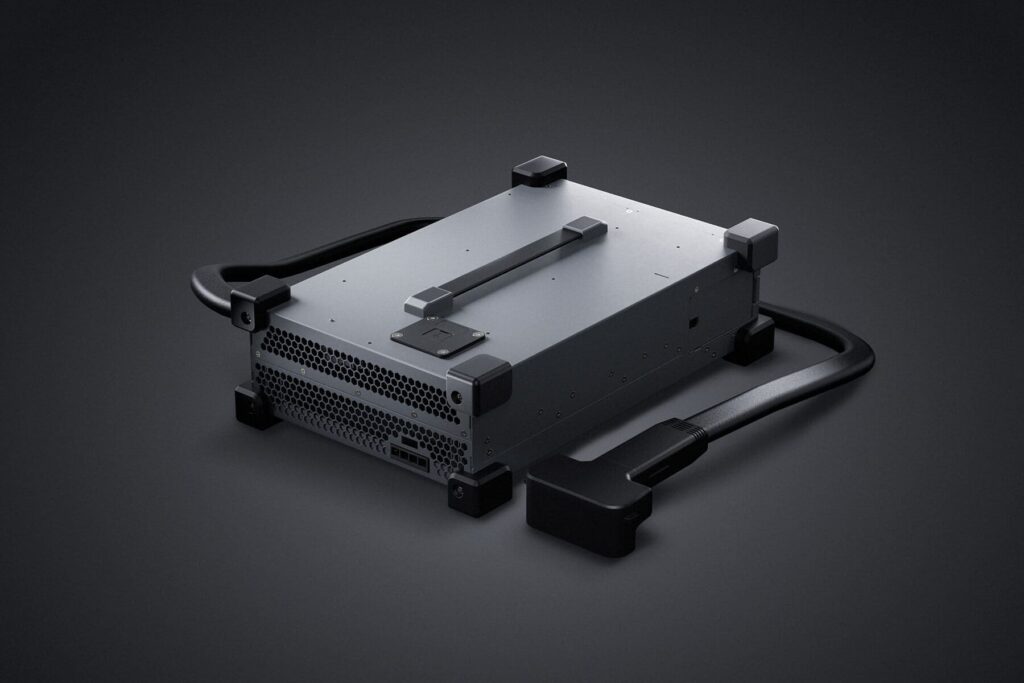

Tri-phase power input
12000 W fast charging[17]
Adaptive power protection
1.8 m charging cable
Single-phase power input
9000 W fast charging[17]
Adaptive powerprotection
1.5 m charging cable

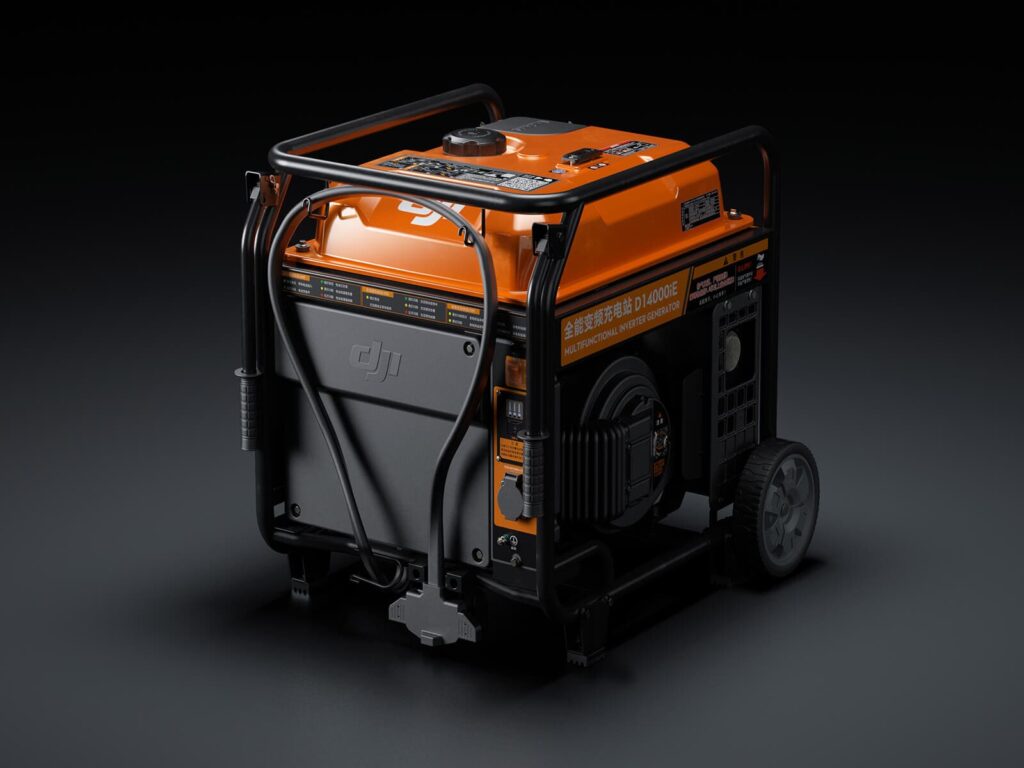

11500 W fast charging[16]
1500 W AC output
1.8 m charging cable
Remote Controller and Video Transmission
IP54
Ingress Protection Rating
Water and Dust resistant
-20° to 50° C
Operating temperature
withstands extreme weather conditions, enabling day and night operation
7-inch
High-brightness Large Screen
Peaking brightness of 1,400 nits, clear even in strong light
DJI Delivery App
The all-new DJI Delivery App is designed for delivery, featuring a streamlined interface and enhanced functionality. It clearly displays the drone’s real-time flight status and cargo transport details. New features like A-B Route Operation Mode and AR Display significantly boost operational efficiency.
DJI DeliveryHub
DJI DeliveryHub, a one-stop air delivery management platform, it’s compatible with the entire DJI FC series. It supports efficient operation planning, comprehensive operation status monitoring, centralized team resource management, and data collection and analysis. Combining professionalism and ease of use, it facilitates efficient multi-platform collaboration and provides seamless one-stop transport management.
Operation Planning
Efficient Operations
Operation Status
Comprehensive Overview
Team Resources
Centralized Management
Intelligent Warning
Safety Proection
Fast response, assisting with emergency rescue supplies transport.
Efficient deployment, ensuring flexible transport of firefighting equipments.
Payload capacity significantly increased, transport more utility tools and equipments.
Overcome terrain limitations, ensuring safe and efficient contstruction tools transport.
Empower logistics scenarios, usher in a new era of low-altitude economy.
Reduce supply transportation costs and ensure efficient transport over waters.

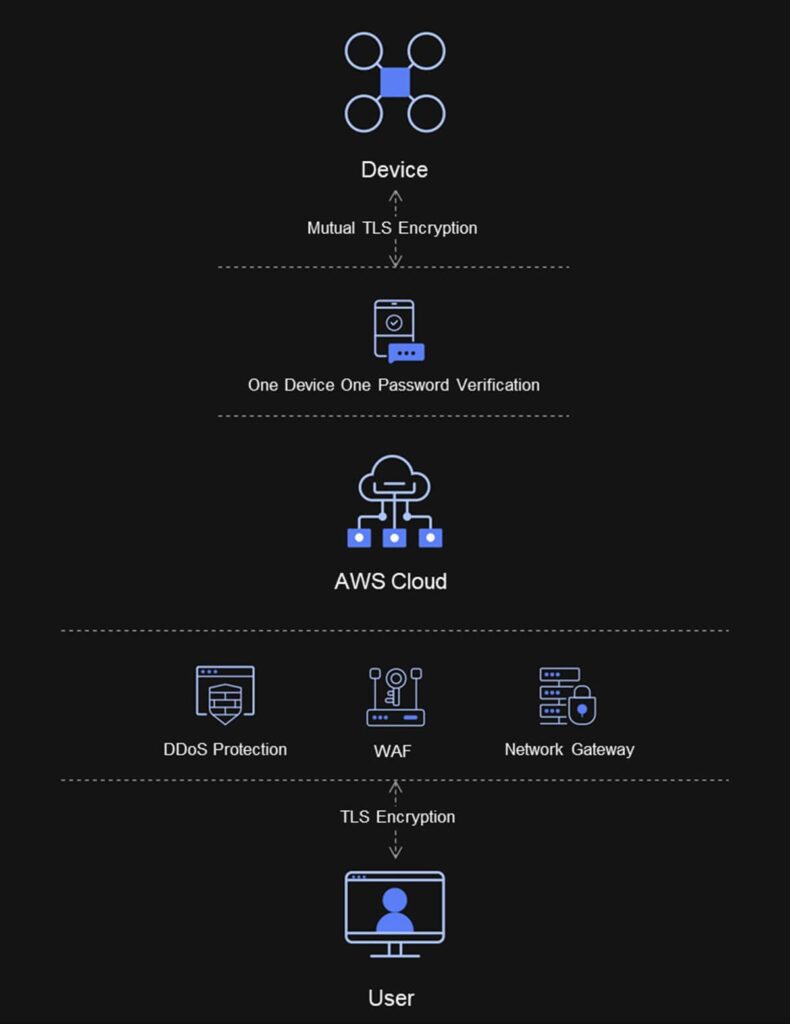

DJI takes the security of your data seriously. We use best-in-class measures to protect the integrity of your photos, videos, flight logs, and other user data, allowing you to confidently use the full power of a cloud-based fleet management system. DJI FC100 and DJI DeliveryHub is built to maintain integrity across multiple levels of the drone and data management process – from device connection and maintenance, to data upload and transmission, to cloud service storage and operational security. DJI DeliveryHub uploads, stores and manages data on cloud servers operated by Amazon Web Services, which are compliant to ISO/IEC 27001 security certifications.
1. The 170kg maximum takeoff weight is the performance specification of the drone. Please follow local laws and regulations in actual use. In the following countries and regions the maximum takeoff weight is restricted to 150kg: Brazil, Japan, Australia, Turkey, Saudi Arabia.
2. This data is obtained from DJI FC100 equipped with fully charged new battery at a takeoff weight of 149.9kg, flying at a constant optimal speed to 0% charge in a windless environment at 25 ° C at sea level. Results may vary depending on the environment, actual use, and firmware version. Always pay attention to app reminders during actual operation.
3. Single-axis system efficiency (including propellers, motor, and ESC) compared to DJI FC30. Test conclusions may vary under different test conditions.
4. Supports active control of opening and closing through APP or button.
5. Wireless recharge requires the hook to be tightened into place. Wireless charging power limit is 45 W, and it can also be charged through Type-C, with a max charging power limit of 30 W. It is recommended to charge below the limit value.
6. The upward rotation radar, rear single-panel radar, and downward single-panel radar are all millimeter-wave radars.
7. The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used to assist in Terrain Following flight and altitude stabilization, while other directions assist with obstacle avoidance. AR safety assistance features serve only as supplementary hints, operators must confirm the surrounding environment’s safety during operation.
Note 1. Downward sensing assists in Terrain Following flight. If the bottom collides with obstacles, it is considered user responsibility.
Note 2. Due to limitations in safety system performance, the aircraft cannot automatically avoid moving objects, and accidents of this nature will be attributed to user responsibility.
Note 3. Cargo obstacle avoidance is only for auxiliary flight; if the cargo and lifting caboe collide with an obstacle, it is the customer’s responsibility.
8.The ADS‑B receiver is only included with the Flagship Winch System.
9. AR safety assistance features serve only as supplementary hints; operators must confirm the surrounding environment’s safety during operation. Detection performance of sensors such as quad-vision and FPV cameras may vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles.
10. When DJI FC100 flies in a 25° C windless environment at sea level with a full payload, the lowest height for opening the parachute is 100 m and the terminal descent speed 7 m/s.
11. An altitude of 6,000 meters is the maximum safe altitude for DJI FC100 flying without payload.
12. During takeoff and landing, DJI FC100 can resist a maximum wind speed of 12 m/s.
13. The protection rating is not permanent and may decline due to aging and wear caused by long-term use. The protection rating does not apply to the propulsion system. After a flight in rain, it is recommended to keep it idling on the ground for 1 minute to prevent corrosion or rust to afflict the propulsion system (precipitation of more than 24.9 mm within 24 hours).
14. Measured with estimated solar radiation of 960 W/m 2. Long-term exposure to high temperatures may shorten the service life of certain components.

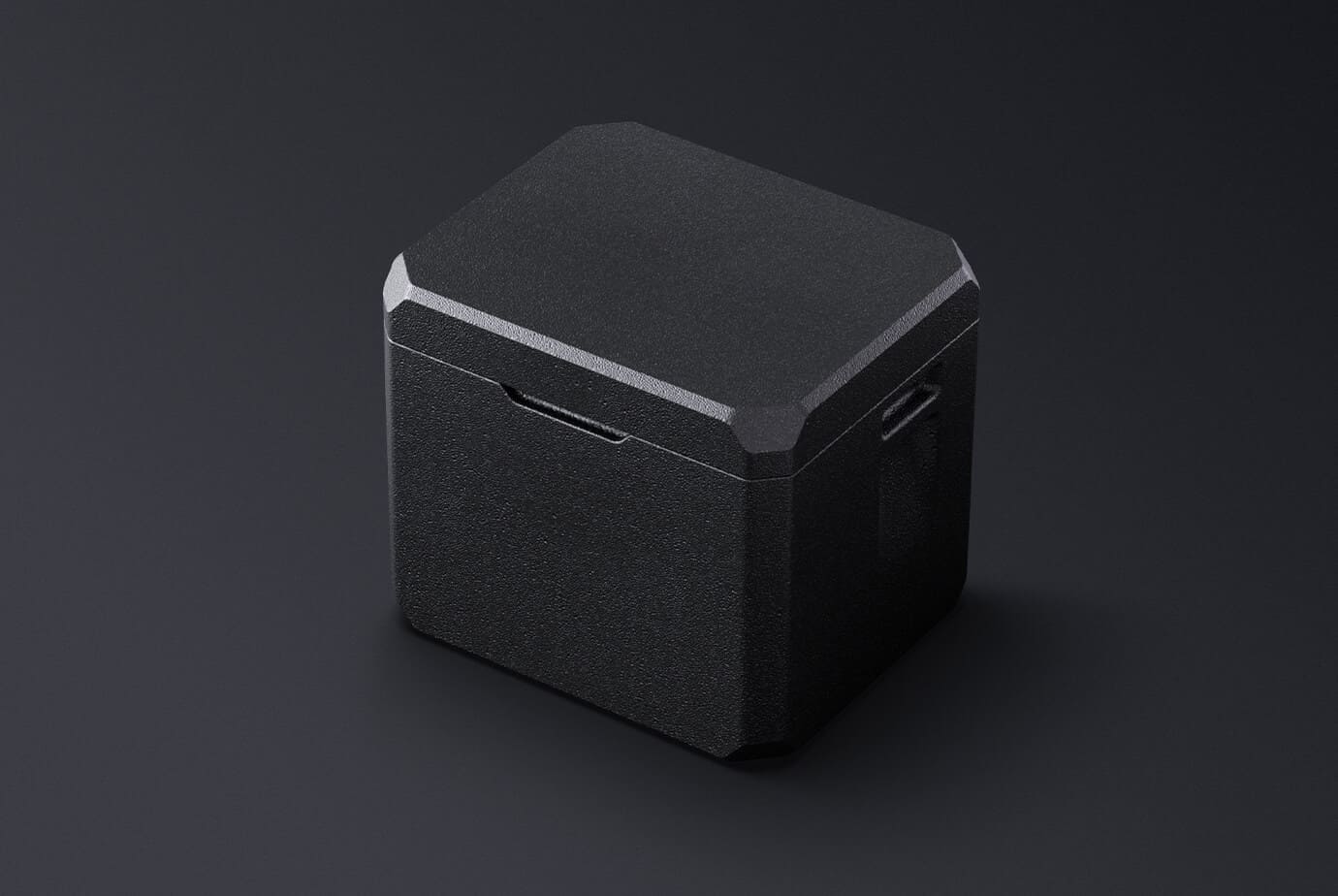

15. The battery heating function requires the additional purchase of a battery Incubator.
16. The output power of the charging station may be affected by altitude and fuel quality.
17. Affected by the local power grid environment, such as distance, wire material, and wire gauge, the output power may vary.
18. The second remote controller is optional and needs to be purchased separately.
19. The 20 km transmission distance is measured with FCC compliance. The maximum Video Transmission communication distance with SRRC compliance is 12 km. The maximum Video Transmission communication distance with CE/MIC compliance is 10 km. The above data shows the farthest communication range for one-way, non-return flights under each standard, and is measured outdoors in an open, interference-free environment. During your flight, please pay attention to RTH reminder on the DJI Delivery App.
20. Optional accessory. Need to purchase separately. Operating frequency aries among countries and regions. Refer to the local laws and regulations for more information.
21. Optional accessory. Need to purchase separately.
22. When connecting an external payload, you need to purchase the DJI FC100 PSDK Connection Cable Combo separately.
23. This feature will be supported via a future Firmware Update. Please stay tuned for relevant firmware update in the remote controller and on the official website.
